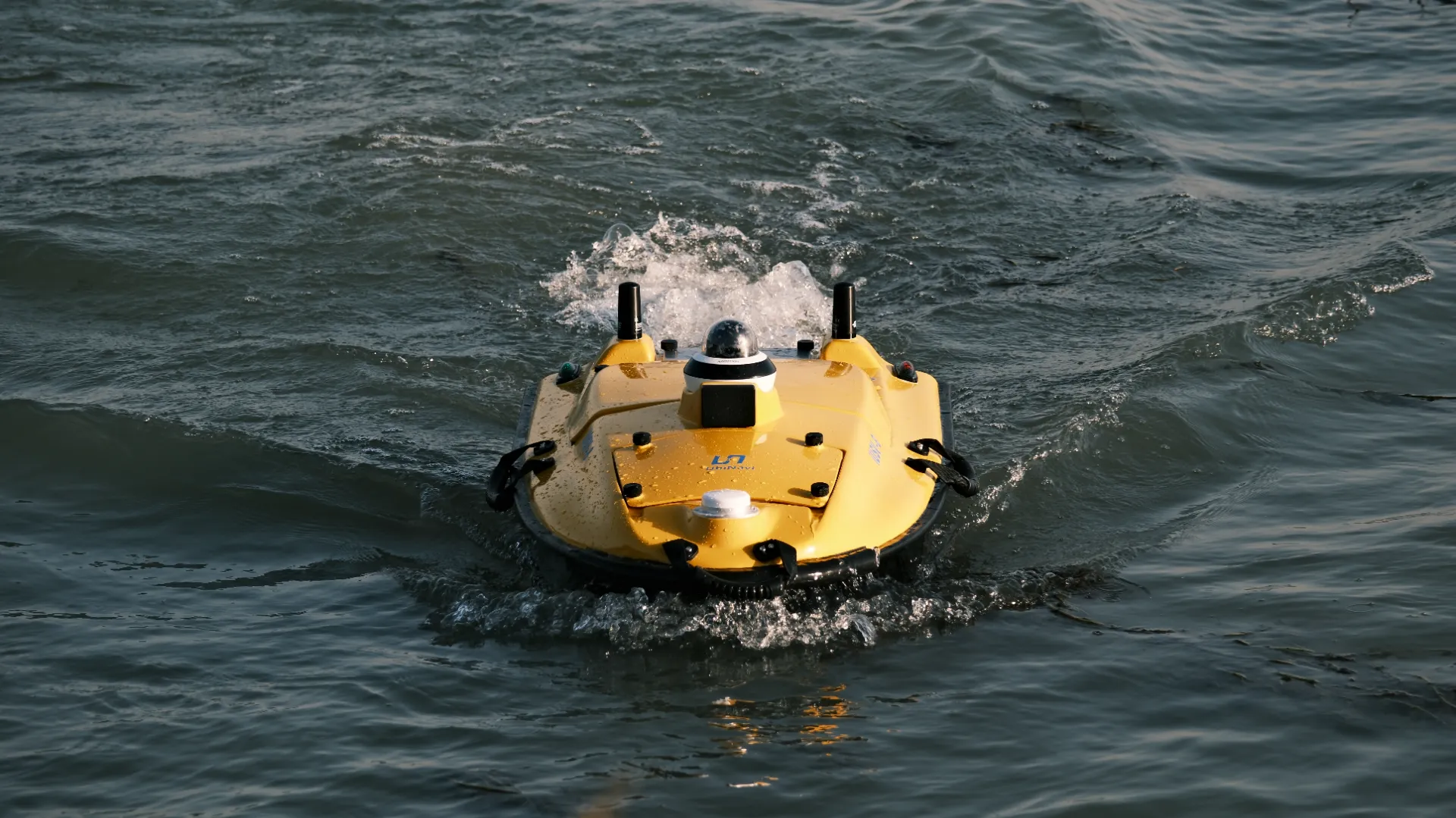

iUSV-8

The iUSV-8 is an all-round platform for hydrographic surveying and detection. Designed for deep-water, high-precision, and complex professional surveying missions.

It can simultaneously be equipped with advanced sensors such as a multi-beam echosounder and ADCP (Acoustic Doppler Current Profiler), providing you with a comprehensive submarine data solution to tackle the most demanding challenges in marine and inland water scientific research and engineering.

quote now

main features

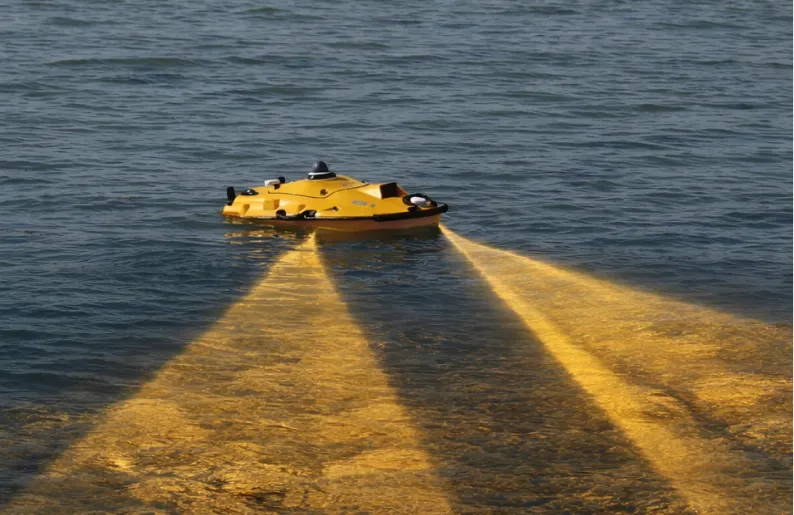

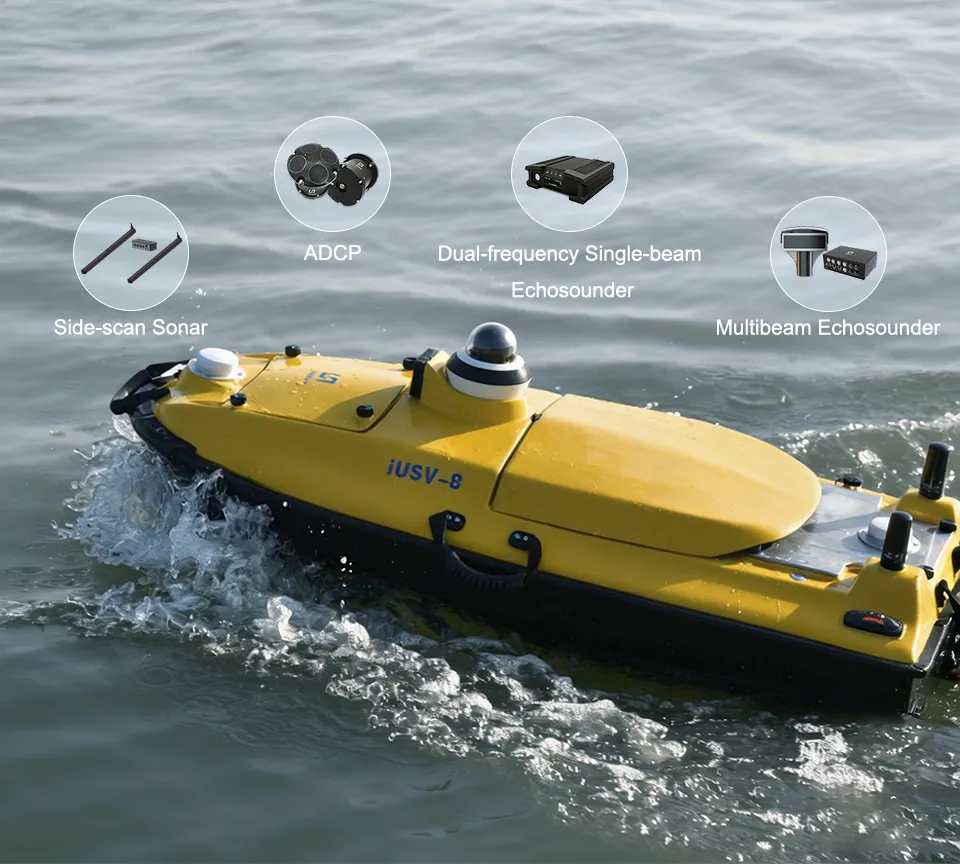

Modular Mission Payloads

Standard single-beam echosounder,with optional sensors such as water quality meters and side-scan sonar, supporting underwater mapping, environmental monitoring, and object detection.

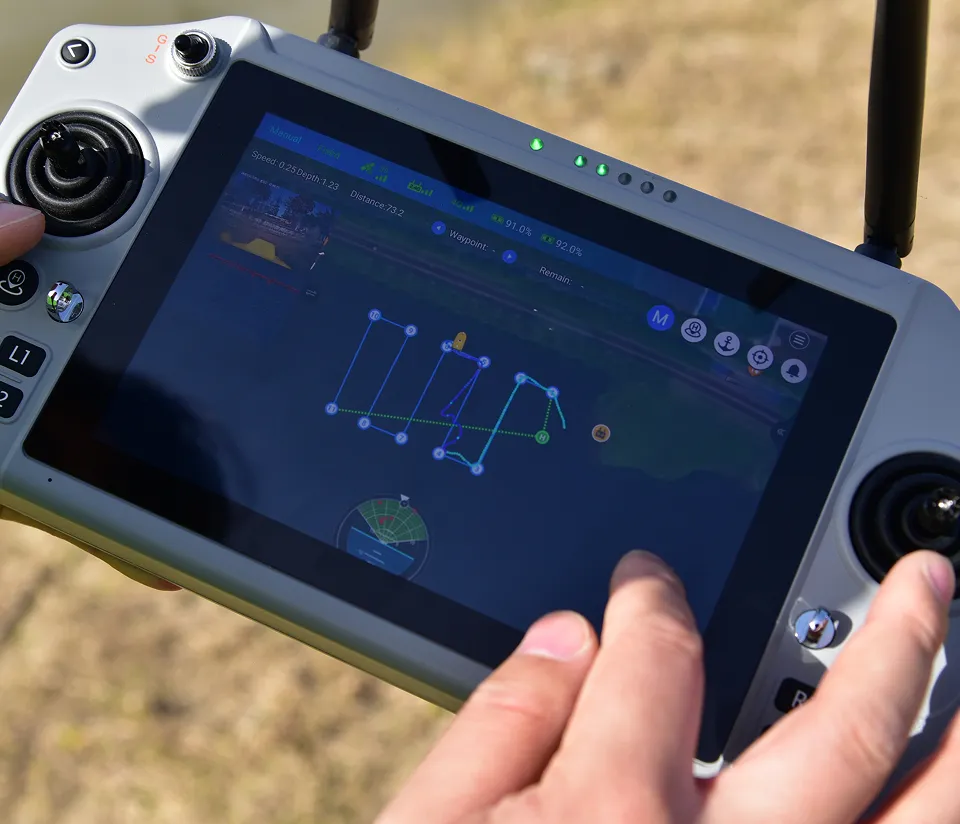

Intelligent Navigation & Control

Equipped with high-precision RTK and proprietary navigation algorithms, ensuring accurate paths, stable posture, and reliable data collection.

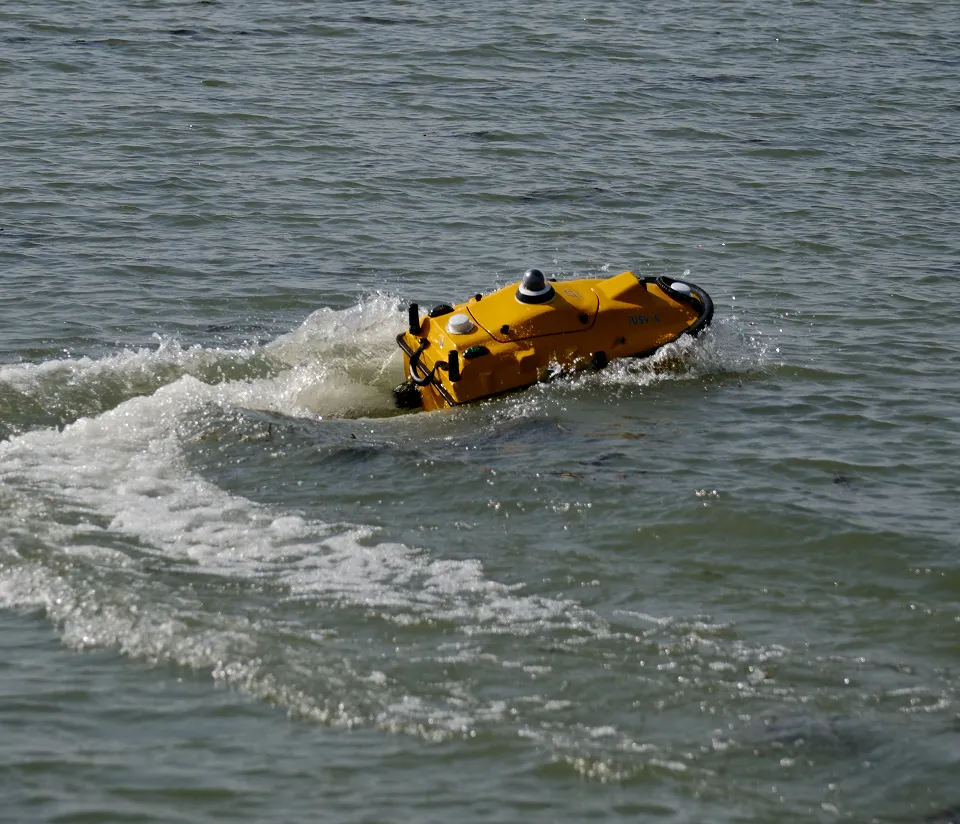

Powerful Propulsion & Endurance

High-power anti-clog thrusters ensure strong ropulsion and weed-free operation.

Multiple Safety Mechanisms

Auto-return (low battery or signal loss),obstacle avoidance, and shallow-water protection for safe operation.

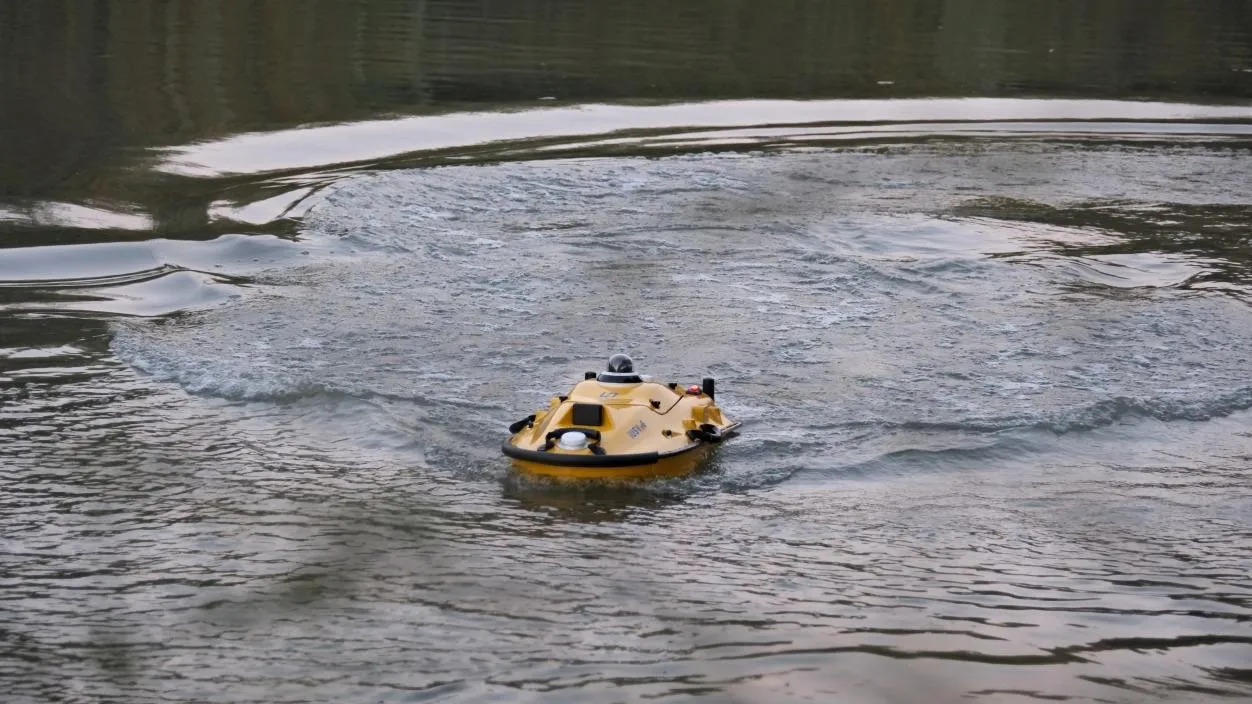

Efficient Surveying

Equipped with a single-beam echo sounder, it provides reliable water depth measurements and underwater topographic maps for rivers, lakes, reservoirs, and nearshore areas.

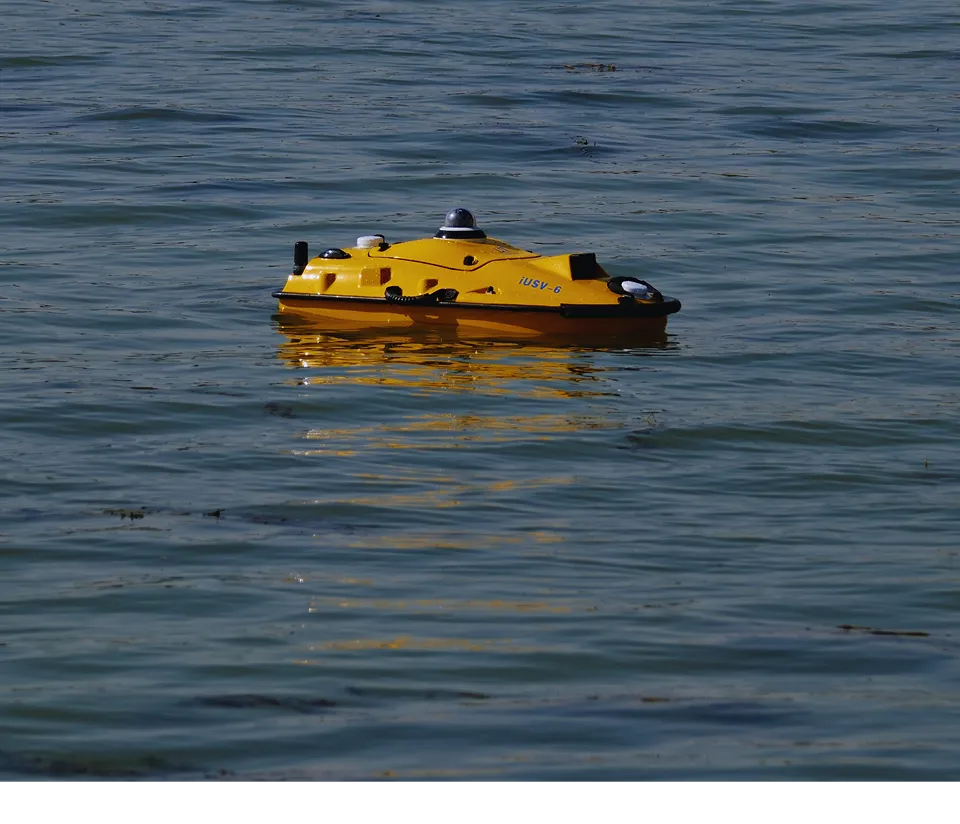

Multi-Tasks Application

Adaptable to various applications,including hydrographic surveying, water environment quality inspections and rapid rescue.

Modular Mission Payloads

Intelligent Navigation & Control

Powerful Propulsion & Endurance

Multiple Safety Mechanisms

Efficient Surveying

Multi-Tasks Application

Modular Mission Payloads

Standard single-beam echosounder,with optional sensors such as water quality meters and side-scan sonar, supporting underwater mapping, environmental monitoring, and object detection.

Intelligent Navigation & Control

Equipped with high-precision RTK and proprietary navigation algorithms, ensuring accurate paths, stable posture, and reliable data collection.

Powerful Propulsion & Endurance

High-power anti-clog thrusters ensure strong ropulsion and weed-free operation.

Multiple Safety Mechanisms

Auto-return (low battery or signal loss),obstacle avoidance, and shallow-water protection for safe operation.

Efficient Surveying

Equipped with a single-beam echo sounder, it provides reliable water depth measurements and underwater topographic maps for rivers, lakes, reservoirs, and nearshore areas.

Multi-Tasks Application

Adaptable to various applications,including hydrographic surveying, water environment quality inspections and rapid rescue.

Application
Scenarios

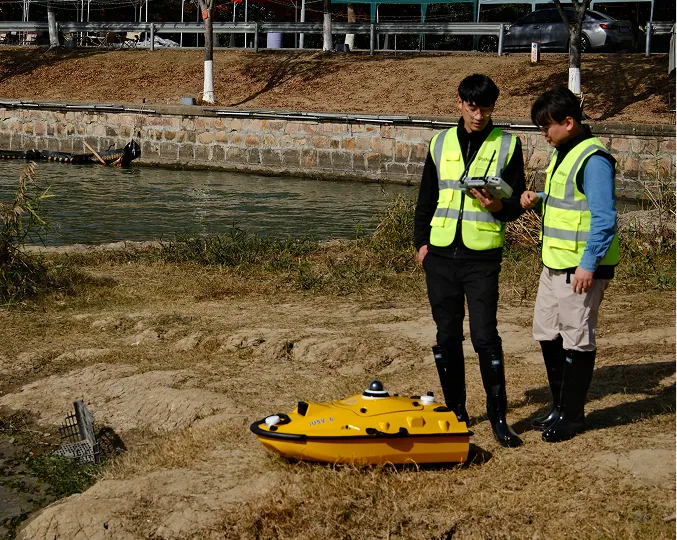

Surface Emergency Response and Search

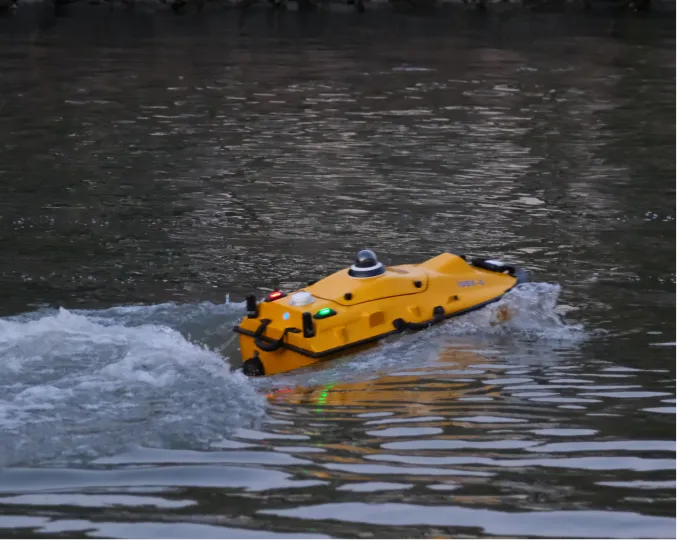

Underwater Topographic Mapping

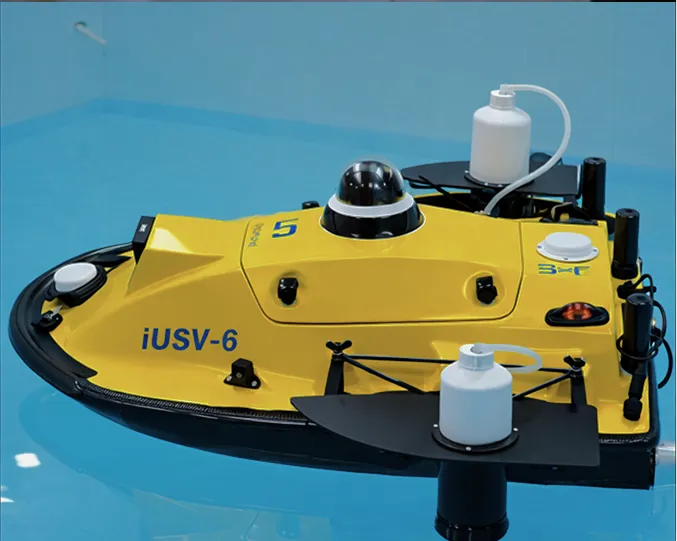

Water Quality and Environment Monitoring

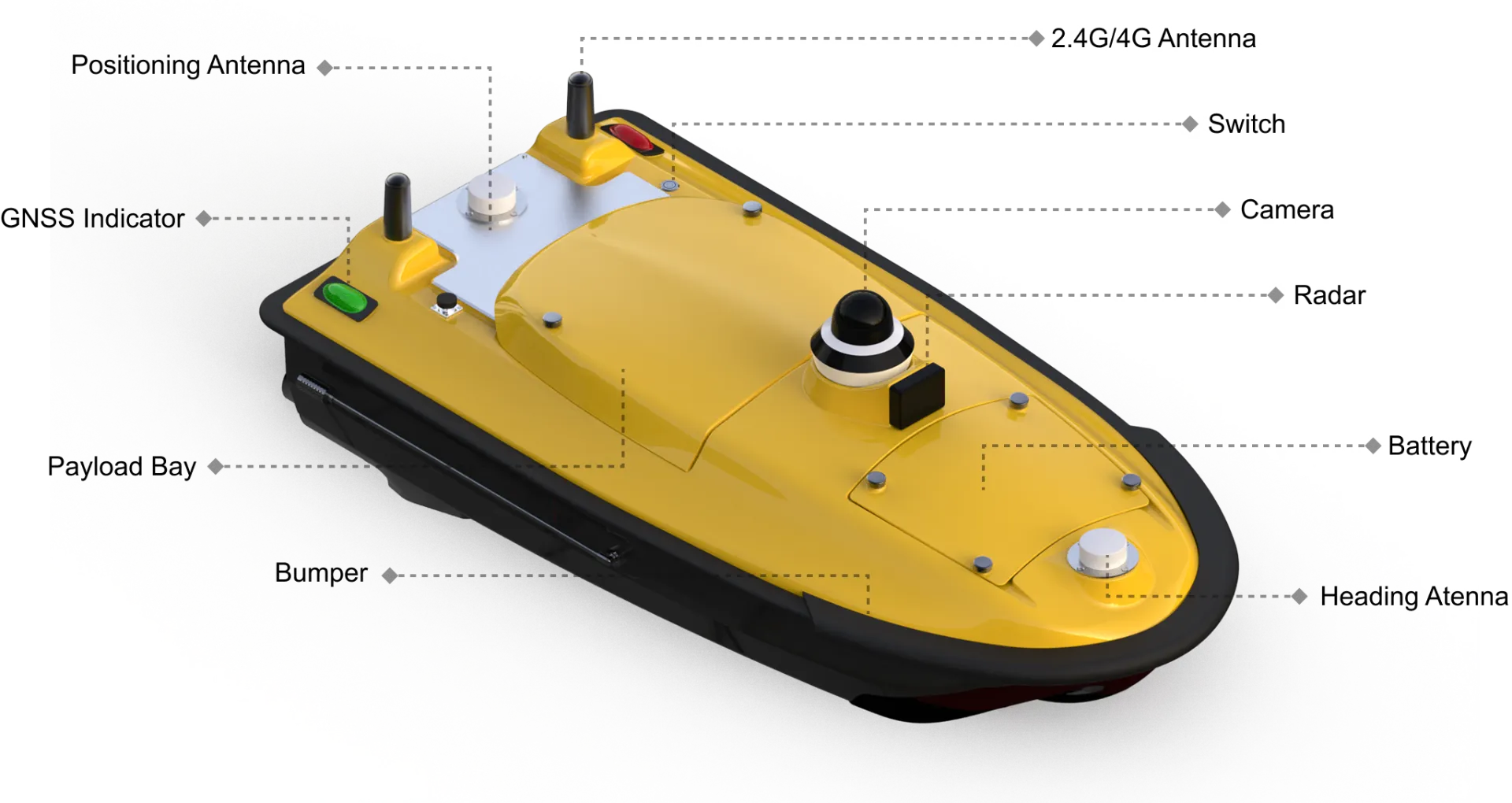

Components & Architecture

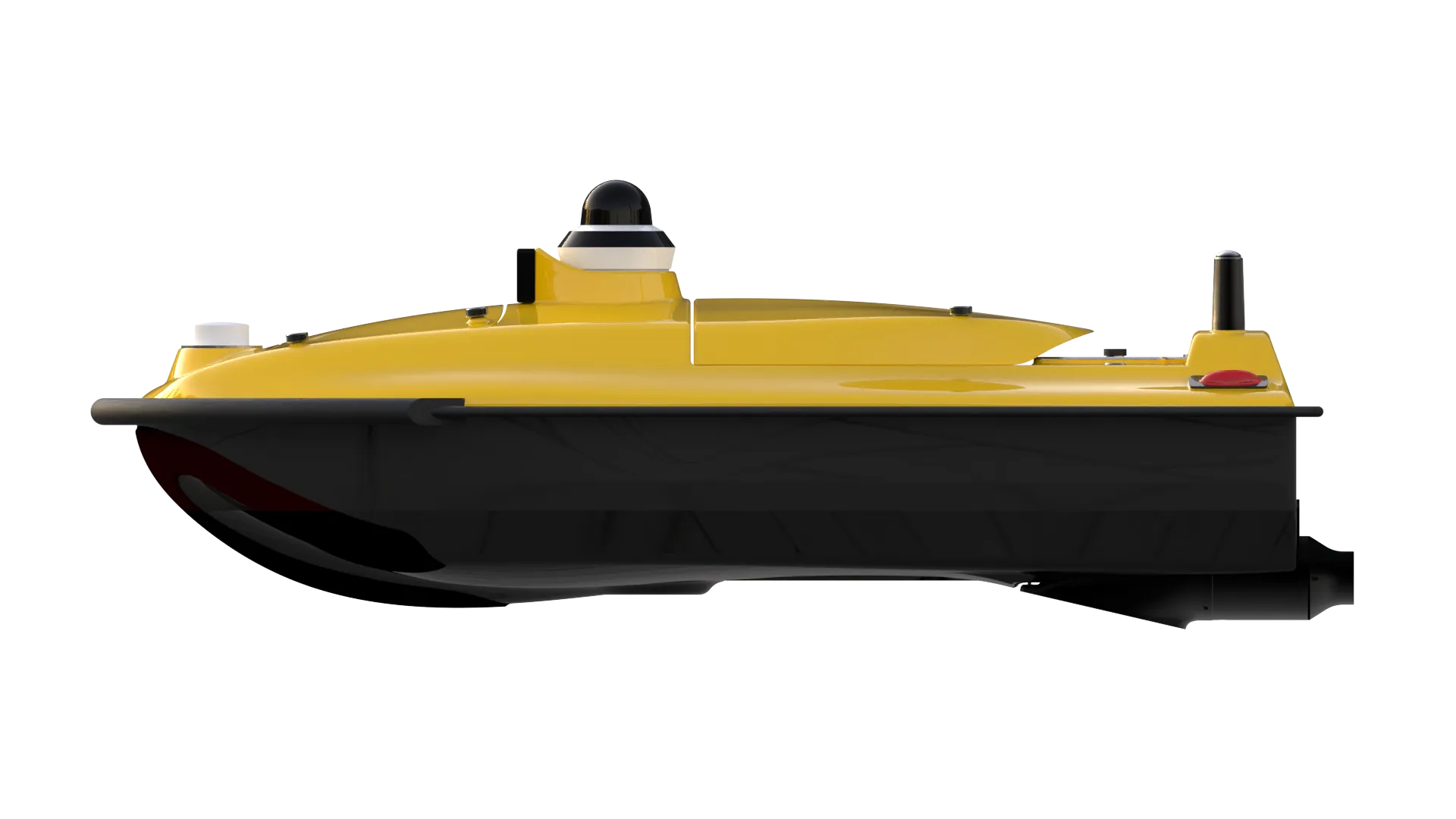

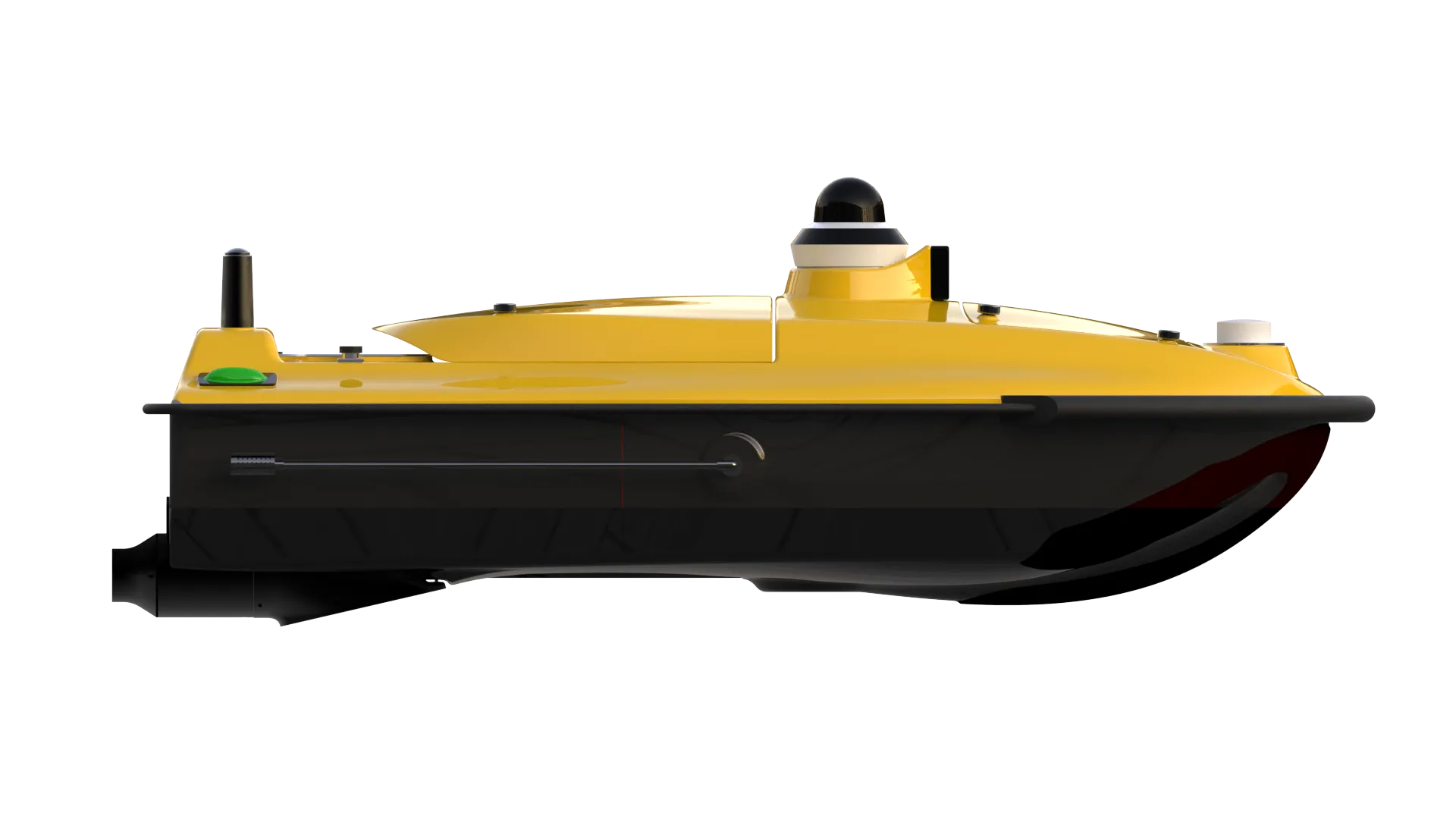

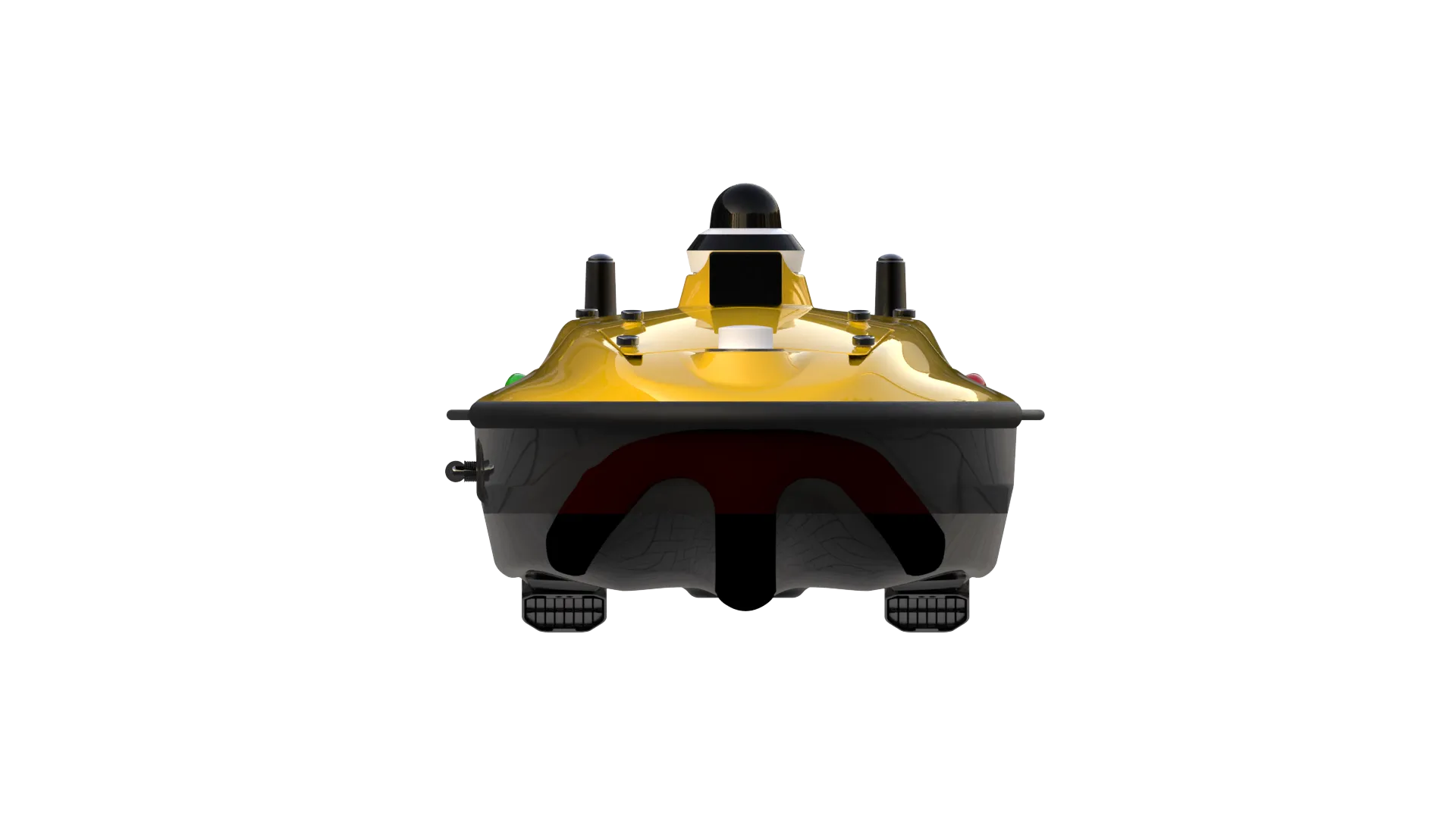

Side view

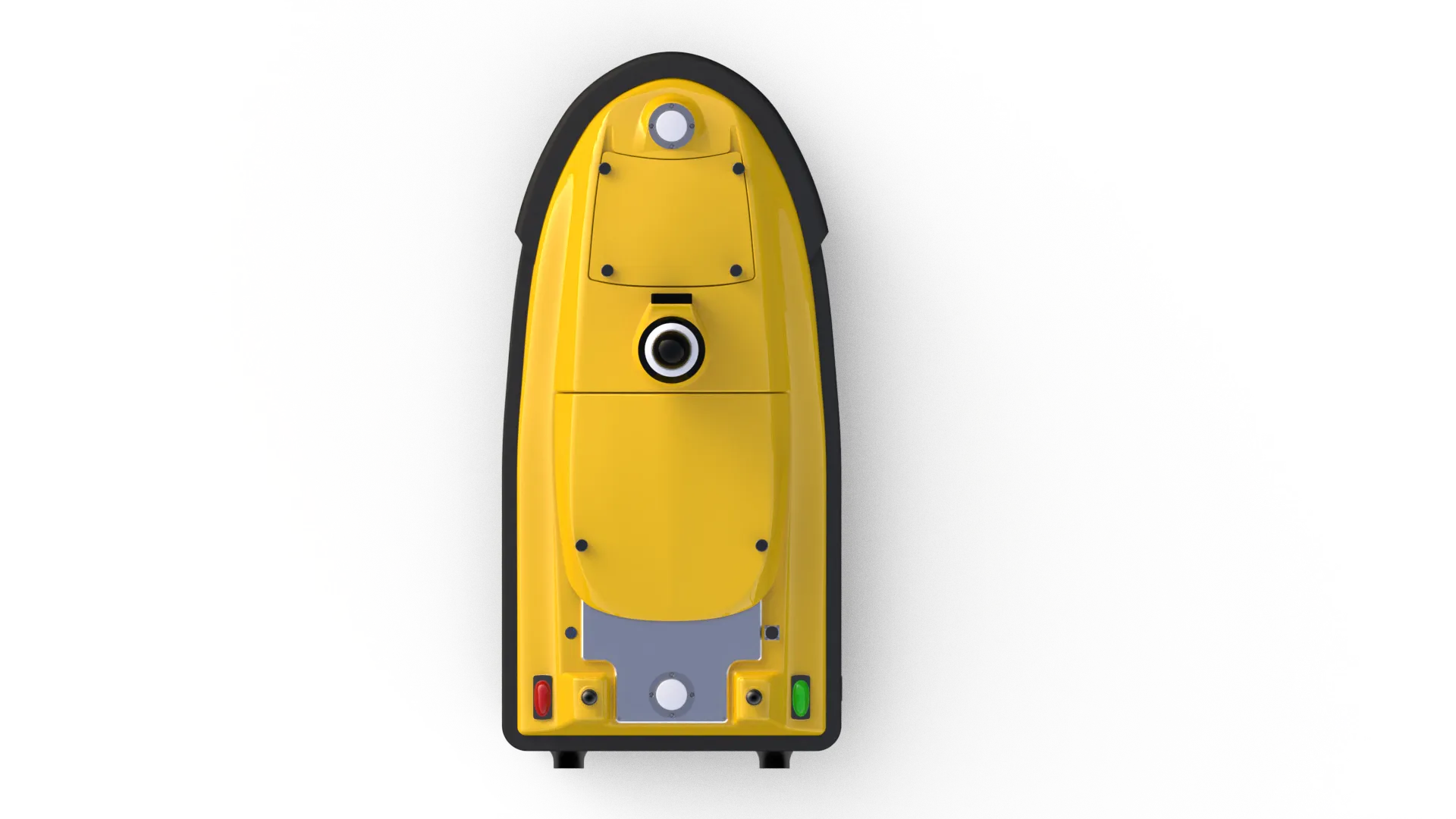

Top view

Bottom view

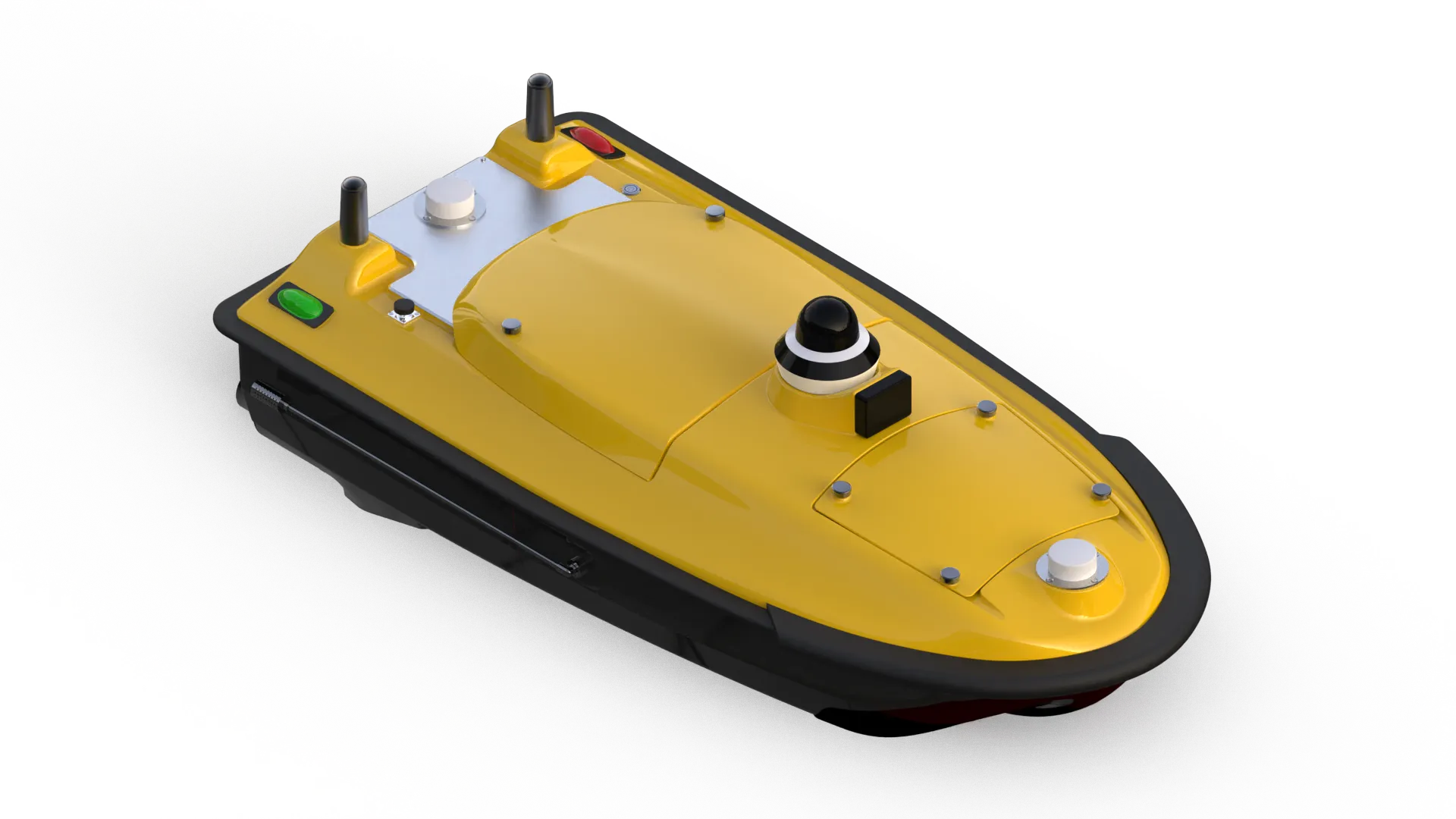

Equiangular view

Product Specifications

iUSV-8

Hull

*Hull Dimension (LWH)*	1.280.580.43m
Material	Macromolecular Polyester Carbon Fiber&Kevlar
Shape	M-shape Monohull
Draft	10cm
Weight	30.1kg(w/o battery) 37.5kg(w/ 2 batteries)
Maximum Payload	50kg
Anti-Wind&Wave	4th-Level Wind, 3rd-Level Wave
Waterproof	IP67
GNSS	Dual GNSS Antennas (positioning&Heading)
Indicators	Two Indicators: GNSS Positioning Status&Controller Connection
Camera	360° Night-Visible Omnidirectional Camera&AI Camera(Optional)
Angle Range and Distance of Obstacle Avoidance	Horizontal & Vertical anger:120°*120° Distance:0.10~20m（can be upgraded to 40m maximum)

Power

Power type	Electric
Motor type	Brushless motor
Steering type	Differential Steering, Support Reversing
Maximum Motor Power	1100W
Motor speed	4000RPM
Motor Installation	Pluggable
Anti-Clogging Design	Semi-Embedded Ducted Thruster:WeedResistant & Easy-Clean
Battery Specification	33.6V 25Ah*2 Rechargeable Lithium Battery; 21700mAh per Battery
Power Supply	Single-Battery Operation; Dual-Battery Extended Runtime
Battery Replacement	Hot-swap, 2h Fully Charged
Battery Endurance	3h@2m/s；7h@1.5m/s
Maximum Speed	6m/s
Operating Range	38km

Positioning

Satellite System	BDS: B1I, B2I, B3I GPS: L1C/A, L2P(Y), L2C Galileo: E1, E5b GLONASS: L1, L2 QZSS: L1C/A, L2C SBAS: L1C/A
Cold Start	＜30s
Initialization	＜5s(D<10km)
Single-point Positioning (RMS)	Horizontal:1.5m Vertical:2.5 m
DGNSS Positioning (RMS)	Horizontal:0.4m + 1 ppm Vertical:0.8m + 1 ppm
RTK Positioning (RMS)	Horizontal:±8mm + 1 ppm Vertical:±15mm + 1 ppm
Ntrip Protocol	Support CORS, NTRIP Client,
Radio Protocol	TT450, Transparent,
Heading Accuracy	0.1°@1m Baseline
Inertial Navigation Accuracy	6 ⁰/ h ,<1m/20s
IMU Update Rate/ Frequency	200Hz

Echosounder

Frequency	200KHz
Beam Angle	8
Sounding Range	0.15-200m(Optional Longer)
Resolution Ratio	8mm
Sounding Accuracy	±1cm+0.1%D (D is depth value of water)
Supply Voltage	9V-28V
Sound Velocity Adjustment	0m/s 1700m/s
Power Consumption	5~10W
Waterproof&Dustproof	IP67

Expansibility

Expandable Payload

Multi-beam echosounder,

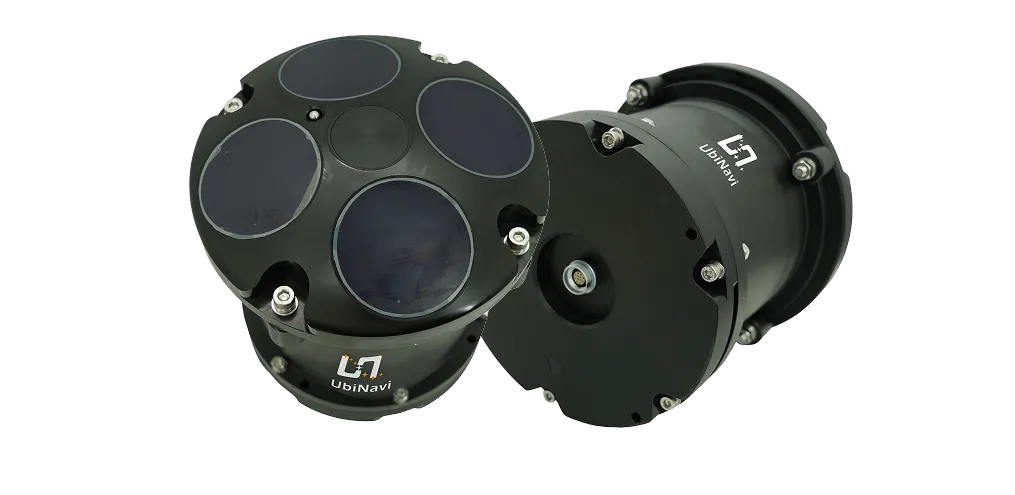

Acoustic Doppler Current Profiler(ADCP),

Sub-bottom Profiler,

Side-scan Sonar,

Dual-frequency Single-beam

echosounder,

Multi-parameter Water Quality Meter,

Water Quality Sampler,

Total Phosphorus and Total Nitrogen

(TP&TN) Analyzer,

Gas Detector,

Laser Radar,

Optical Camera,

(Open SDK to Extend and Customize)

RELATED
products

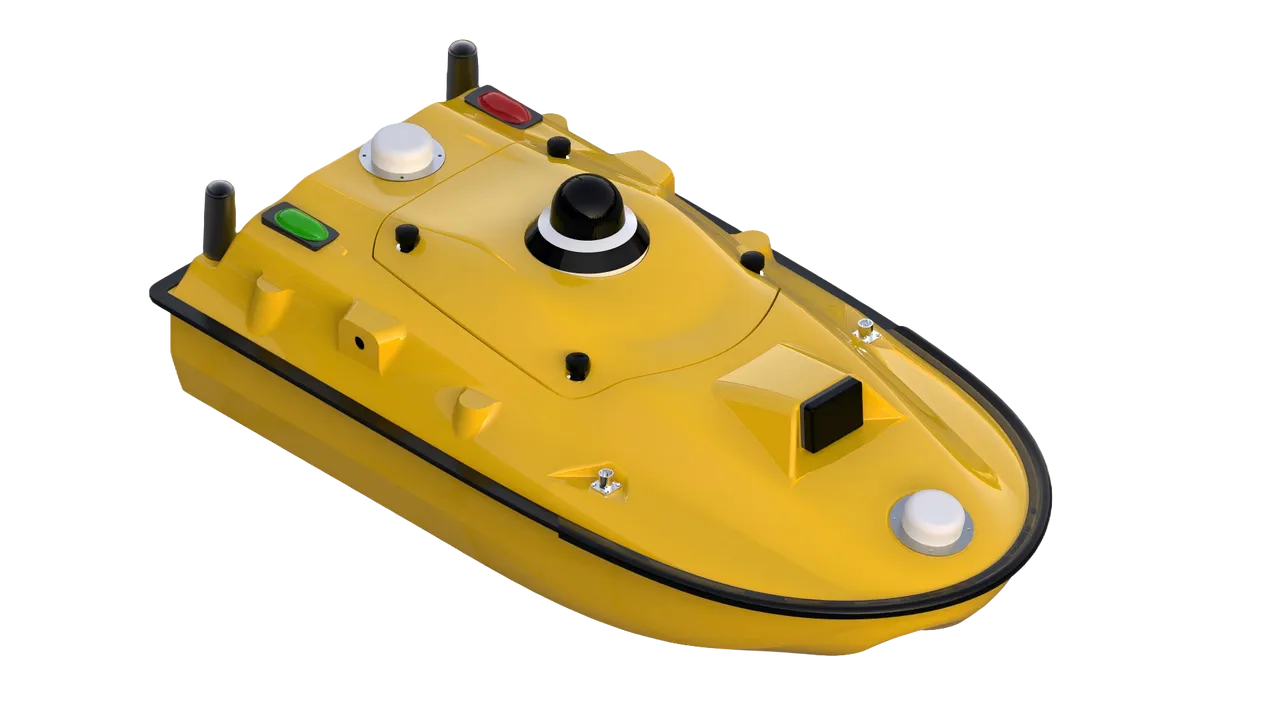

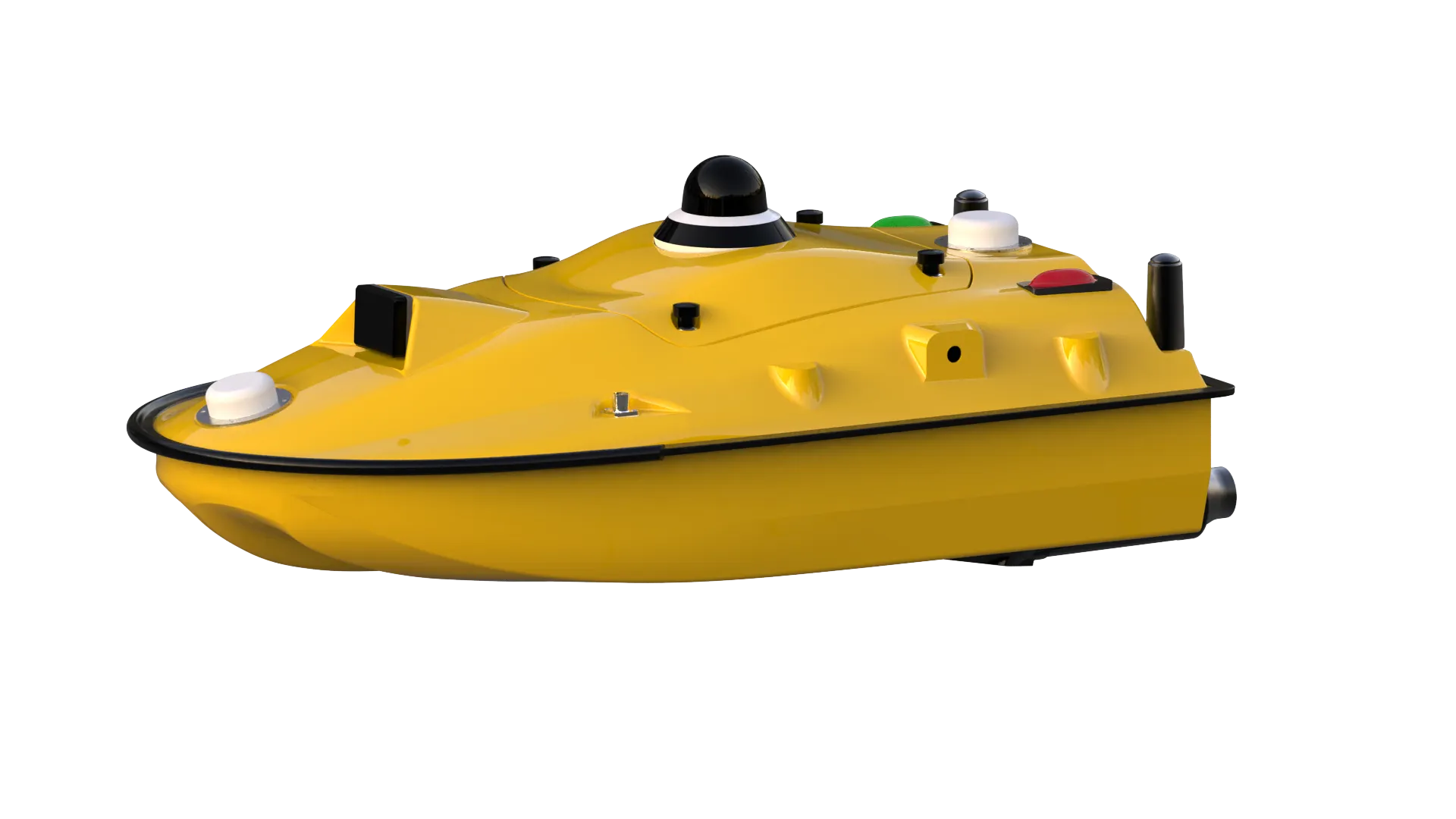

iUSV-6

Entry Level Surveying Monitoring Platform

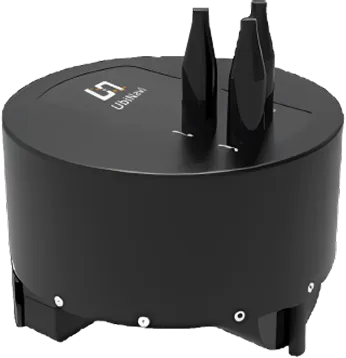

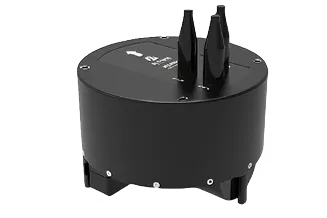

iMBES

Multi-beam echosounder

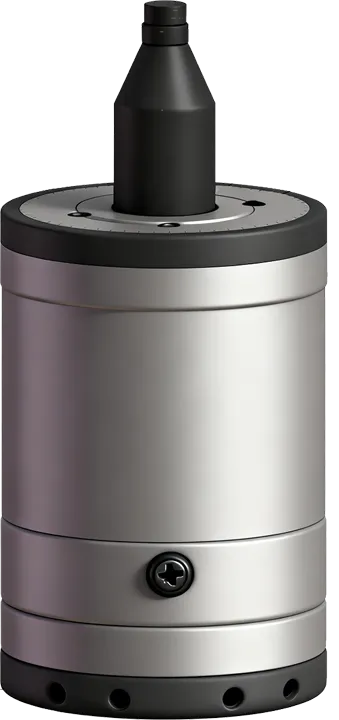

iSBES
